Technical data Fibula

weight: 120 g without brakepads (60g front / 60g rear)

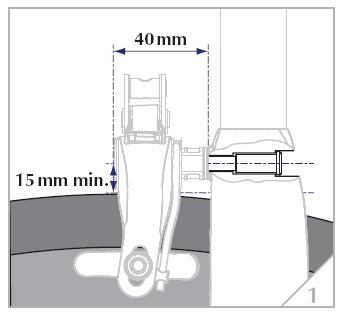

fits:

 tl_files/content/produkte/fibula/technische_daten/Montage.JPG

compatible brakepads: All brakepads suitable for Shimano ® Standard
compatible brake levers:

The THM-Fibula racing brake can be used with all brake levers that exhibit a
leverage ratio of 2:1 and above (brake lever travel : inner brake cable travel), the Fibula is compatible with all prevalent brake levers.

Rim:

The brake pads are about 29 mm wide apart in their fully open position.
That means, rims up to a width of about 26 mm can be used with the fibula.

Motion ratio brakes: 1:1,75 front, 1:1,5 rear
max. permissible total weight:
(rider+bicycle+luggage)
110 kg (243lbs)
